Unmanaged Networks Industrial Ethernet Switches 5 Port 10/100M Bit/S
Key Features
- Reliable data transmission with long working life
- Supports full-duplex or half-duplex mode with automatic negotiation
- Network port supports fully automatic cross-identification
- Built-in store-and-forward mechanism supporting multiple protocols
- Industrial-grade operation with MTBF >300,000 hours
- DC 12-52V power supply with reverse connection protection
- Lightning surge protection: 5000A (8/20μs)
Technical Specifications
| Attribute |
Value |
| Transmission Rate |
10/100Mbps |
| Function |
POE |
| Switch Capacity |
100mbps |
| Ethernet Port |
5*RJ45 Ports |
| Power Voltage |
DC12-52V |
| Packet Buffer |
512 kbit |
| Weight |
0.36 kg |
Port Configuration
Port Description:
5 x RJ45 port, 1 x 10/100Base-TX up-link, 4 x 10Base-T/100Base-TX down-link
Environmental Conditions
Operating Temp:
-30°C to 75°C (-30°F to 167°F)
Storage Temp:
-40°C to 75°C (-40°F to 167°F)
Humidity:
5% to 95% (non-condensing)
Power Specifications
Input Voltage:
DC12-52V
Connection:
Phoenix terminals
Protection:
4.0A over-current, reverse polarity
Mechanical Characteristics
Housing:
IP40 metal shell
Mounting:
DIN rail or wall-mounted
Cooling:
Fanless, natural cooling
Dimensions:
105 x 74 x 30mm (L x W x H)
Standards Compliance
EMI:
FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
IEC/EN 61000-4 series (ESD, RS, EFT, Surge, RF Conducted)
Additional Specifications
MAC Address Table:
1K
Power Consumption:
< 3W
MTBF:
300,000 hours
Warranty:
3 years

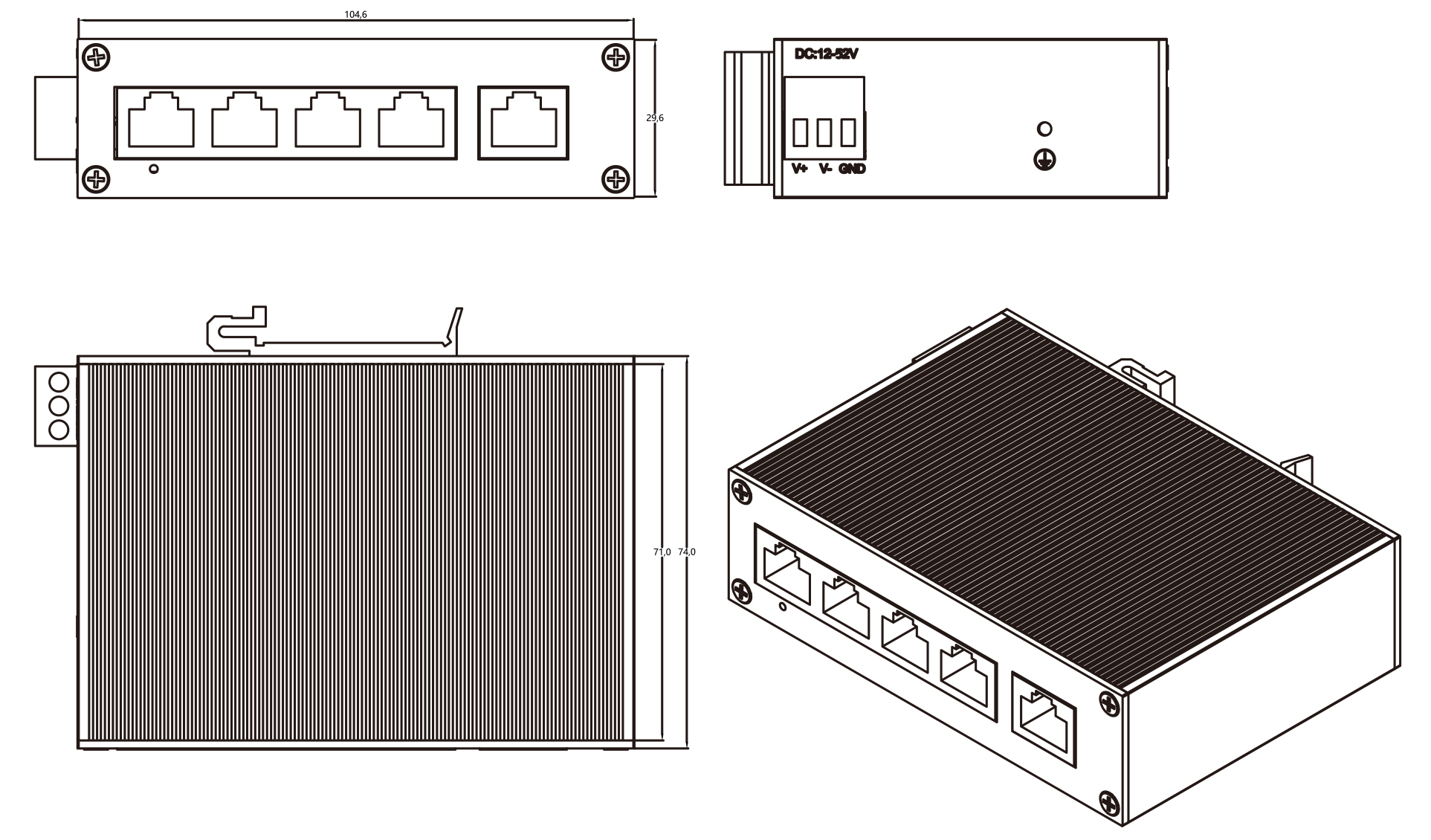

Mechanical Dimension Drawing
