DIN Rail Mounting Industrial Ethernet Switches 8Port IP40 With Dual Row Port

  • 1
  • 2

Brand Name : KRONZ

Model Number : US-08TY

Place of Origin : Guangdong, China

MOQ : 10 pieces

Price : Negotiable

Certification : CE

Payment Terms : T/T, Western Union,

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Paper box packing

Transmission Rate : 10/100/1000Mbps

Function : POE

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 1000mbps

Ethernet port : 8*RJ45 Ports

Input voltage : 12/24/48VDC(10.8-52.8VDC)

Buffer space : 1 Mb

Protection level : IP40

Contact Now

DIN Rail Mounting Industrial Ethernet Switches 8Port IP40 With Dual Row Port
Product Attributes
Attribute Value
Transmission Rate 10/100/1000Mbps
Function POE
Communication Mode Full-Duplex & Half-Duplex
Switch Capacity 1000mbps
Ethernet port 8*RJ45 Ports
Input voltage 12/24/48VDC(10.8-52.8VDC)
Buffer space 1 Mb
Protection level IP40
Product Description

Industrial Ethernet Switches with Dual Row Port and DIN Rail Mounting 8-port

8-port 1000M bit/s dual row electric port Industrial-grade Ethernet switch, supporting 10/100/1000Base-TX. US-08TY switch has super strong ruggedness to adapt various harsh environment, and can also be conveniently placed in a compact control box. The rail mounting feature, wide temperature operation, and the IP40 protected housing and LED indicator make US-08TY a plug-and-play industrial-grade, providing users with a reliable and convenient solution for networking their Ethernet devices.

Product Features
  • Ensure reliable data transmission and long working life
  • Transfer speed automatically adjustable via Auto-Negotiation function
  • Half Duplex/Full Duplex, Auto-crossing
  • Store-and-forward switching mode, supporting multiple protocols
  • Din rail with IP40 metal mechanism
  • Wide operating temperature: -20°C~75°C
Technical Data
Products description 8-port unmanaged Industrial Ethernet Switch
Port description 8 x RJ45 female 8 pin, 8-port 10/100/1000Base-T(X)
MDI/MDI-X auto-crossover, auto-negotiation
Network protocol IEEE802.3, IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX
IEEE802.3ab1000Base-T; IEEE802.3x
Environmental Conditions
Ambient temperature -20 ~ 75 °C
Storage temperature -40 ~ 85 °C
Relative humidity 5% ~ 95% (no condensation)
Power
Input voltage 12/24/48VDC(10.8~52.8VDC)
Power consumption 130mA@24Vmax
Interface terminal 1 plug-in-3 pin wiring terminal
Overload protection Provided
Reverse protection Provided
Mechanical Characteristics
Shell IP40 protection level, metal shell
Installation DIN rail mounting, wall-mounted
Cooling method Natural cooling, fanless
Weight 0.6Kg
Size 100x 85x 47.2mm (L x W x H)
Standards

IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±12kV air discharge
IEC(EN)61000-4-3(RS): 10V/m(80 ~ 1000MHz)
IEC(EN)61000-4-4(EFT): network port: ±4kV CM//±2kV DM
IEC(EN)61000-4-5(Surge): network port: ±4kV CM//±2kV DM
IEC(EN)61000-4-6(Radio Frequency Conducted): 3V(10kHz ~ 150kHz),10V(150kHz ~ 80MHz)
IEC(EN)61000-4-16(Common Mode Conducted):30V cont. 300V,1s
IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6

Switch Attributes
Forwarding rate 1488095pps
Switch method Store-Forward
MAC table 4K
Buffer space 1Mb
Backplane bandwidth 16G
Max. frame length 16KB
Protection level IP40
Mean time between failures 300,000 hours
Warranty 3 years

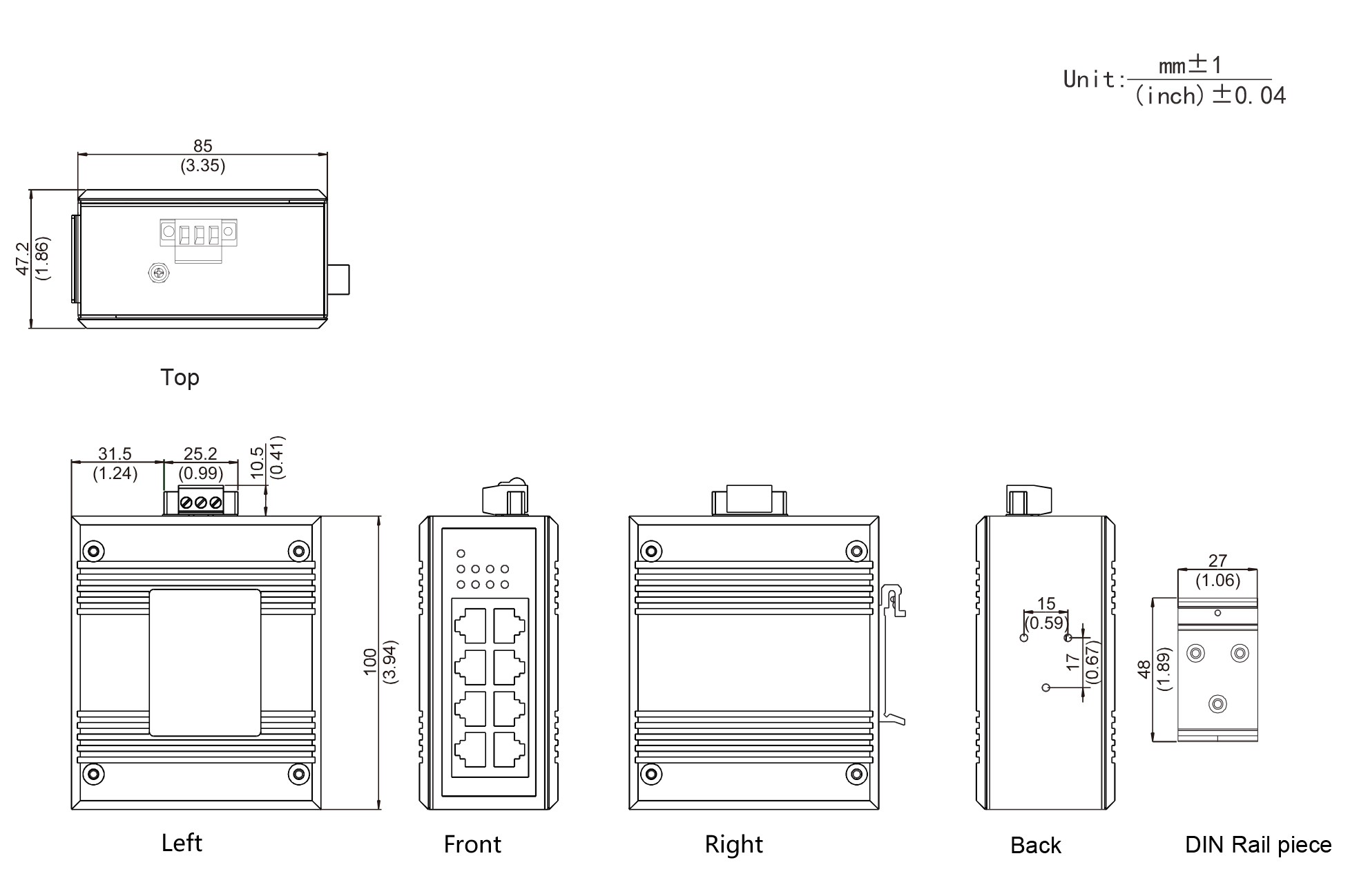

Mechanical Dimension Drawing
DIN Rail Mounting Industrial Ethernet Switches 8Port IP40 With Dual Row Port
