RJ45 Industrial Ethernet Switches 16 Ports Unmanaged Network Switches
Product Specifications
| Attribute |
Value |
| Private Mold |
NO |
| Products Status |
Stock |
| Transmission Rate |
10/100/1000Mbps |
| Communication Mode |
Full-Duplex & Half-Duplex |
| Condition |
New |
| Ethernet port |
16*RJ45 Ports |
| Power voltage |
DC12-52V |
| Packet buffer |
4 M |
Industrial Ethernet Switches with 16-Ports RJ45 Unmanaged Network Switches
The U-16TC/L is an unmanaged industrial Ethernet switch featuring 16-port 10BaseT/100/1000 BaseTX connectivity. Designed for harsh environments, it operates in temperatures from -40°C to 85°C and features DIN rail mounting, IP40 protection, and LED indicators for reliable plug-and-play network solutions.
Key Features
- Reliable data transmission with long working life
- Auto-Negotiation function for automatic transfer speed adjustment
- Half Duplex/Full Duplex with Auto-crossing capability
- Store-and-forward switching mode supporting multiple protocols
- High reliability with MTBF: 300,000 hours
- Redundant 12-52VDC power input with reverse-polarity protection
- DIN rail mounting with IP40 metal housing
- Lightning surge impact protection: 5000A (8/20μs)
Technical Specifications
Port description: 16 x RJ45 female 8 pin, 8-port 10/100/1000Base-T(X)
Network protocol: IEEE802.3, IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX; IEEE802.3ab1000Base-T(X); IEEE802.3z 1000BaseX; IEEE802.3x - flow control
Environmental Conditions
Operating temperature: -40~85°C (-40~185°F)
Storage temperature: -40~85°C (-40~185°F)
Relative humidity: 5%～95% (no condensation)
Power Specifications
Input voltage: DC 12~52V
Connection terminal: Removable screw terminals block
Overload-current: Present
Reverse-polarity protection: Present
Mechanical Characteristics
Housing: Metal
Protection rating: IP40
Mounting: DIN-rail, wall
Cooling: Natural-cooling, fanless
Weight: 1Kg
Size: 176x136x45.5mm (LxWxH)
Switch Attributes
Packet buffer memory: 4Mbit
Power consumption: < 15W
Forwarding mode: Store-and-forward
MAC address: 8K
Bandwidth: 56G
Latency: < 10μs

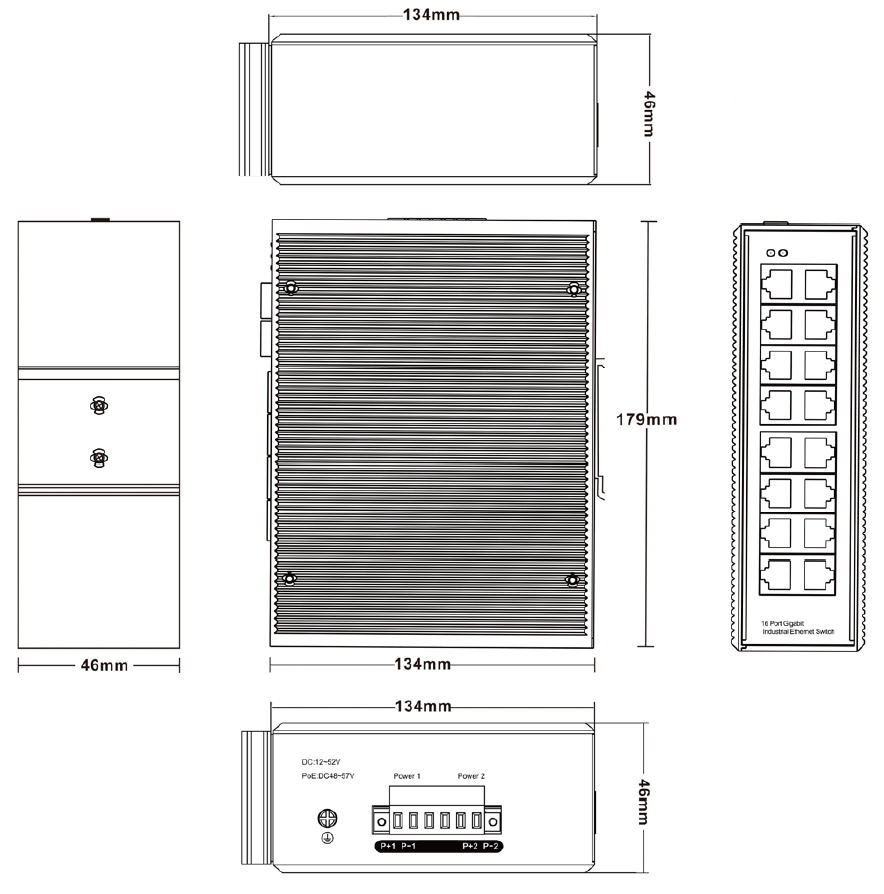

Mechanical Dimension Drawing
