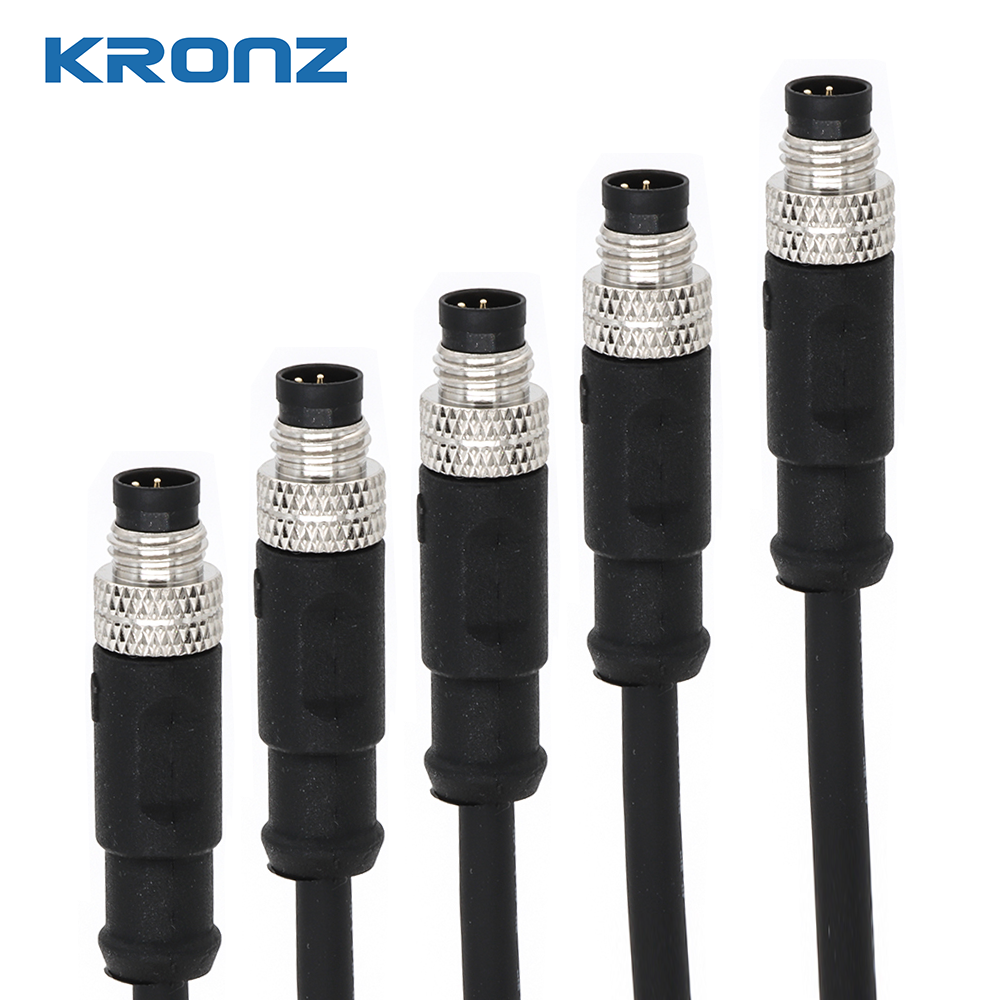

Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight

  • 1
  • 2

Brand Name : KRONZ

Model Number : M0808M-2/P00R

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Type : Contactor

Description : M8 Pre-assembled Cable Connector

Cable : PVC Black

Cable Outlet : Straight

Wire Gauge : 8×0.14 (8×26AWG)

Gender : Male

Degree of Protection : IP67

Cable Length : Customized

Contact Now

M8 Connectors 8 Pin with Moulded Cable A Code Male 1.5A 2M Cable Straight



Product Description

M12 connectors are typically made from high-strength materials such as nickel-plated brass, stainless steel, or durable plastics (like polyamide) for the housing. The contacts are usually made from gold-plated brass or bronze to ensure excellent electrical conductivity and corrosion resistance. Rubber or silicone gaskets and O-rings are used for sealing to achieve high ingress protection ratings.

Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight

Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight



Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

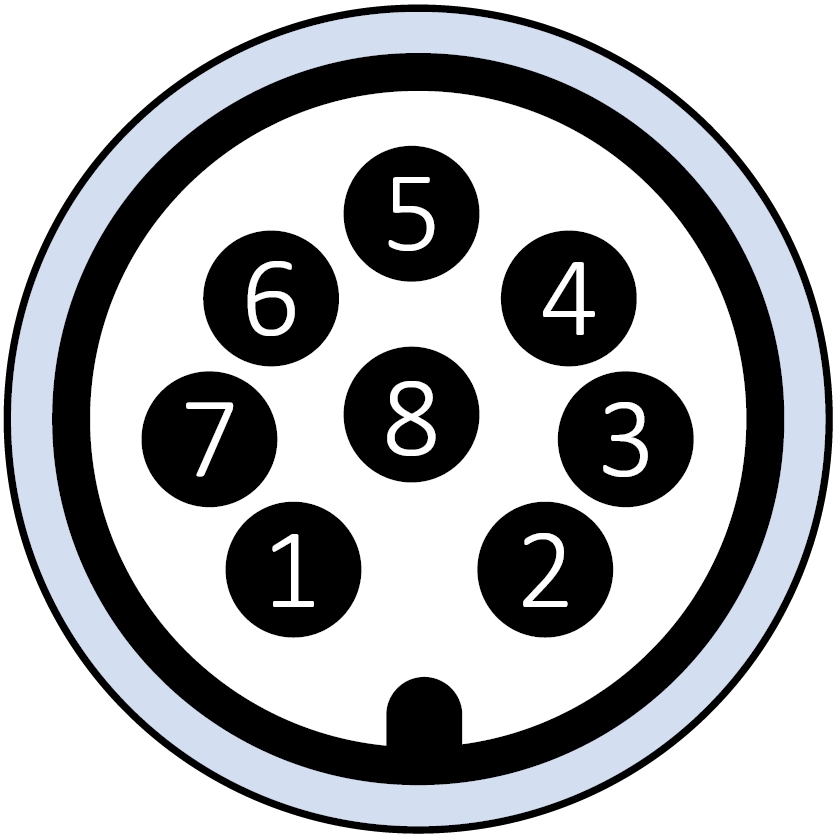

Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Moulded Cable M8 8 Pin Male Connectors With A Code 1.5A 2M Cable Straight 1=WH
2=BN
3=GN
4=YE
5=GY
6=PK
7=BU
8=RD		 A 1.5A 30V 8×0.14
(8×26AWG)
PVC, black		 Straight 2M M0808M-2/POOR
5M M0808M-5/POOR
10M M0808M-10/POOR
