Panel Mount M8 Male Connector 3/4/5/6/8Pin Front Mounting 0.5m Pre Wired

  • 1
  • 2
  • 3

Brand Name : KRONZ

Model Number : F0803M-0.5F/M8

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Mounting Type : Front mounting

Product name : M8 panel mount connector

Contacts : 0.5m pre-wired

Gender : Male

Rated Current : 3A

Voltage : 60V

Contact Now

M8 Connector Panel Mount Male 3/4/5/6/8Pin Front Mouting 0.5m Pre-wired Straight



Product Description

M8 panel mount connectors play an important role in the automotive industry. It is widely used in many parts of automobiles such as engine systems, exhaust systems, fuel systems, and cooling systems. Its application features include: the ability to maintain stable connections in environments with high temperatures, high pressures and frequent vibrations, ensuring reliable transmission of signals and energy between various components of the car. For example, in the engine system, the M8 flange connector can accurately transmit sensor signals to ensure efficient engine operation; in the exhaust system, it can withstand high temperatures and corrosion to prevent gas leakage. In addition, the automotive industry has extremely high requirements for the sealing and durability of M8 flange connectors, as any connection failure may affect the performance and safety of the car.

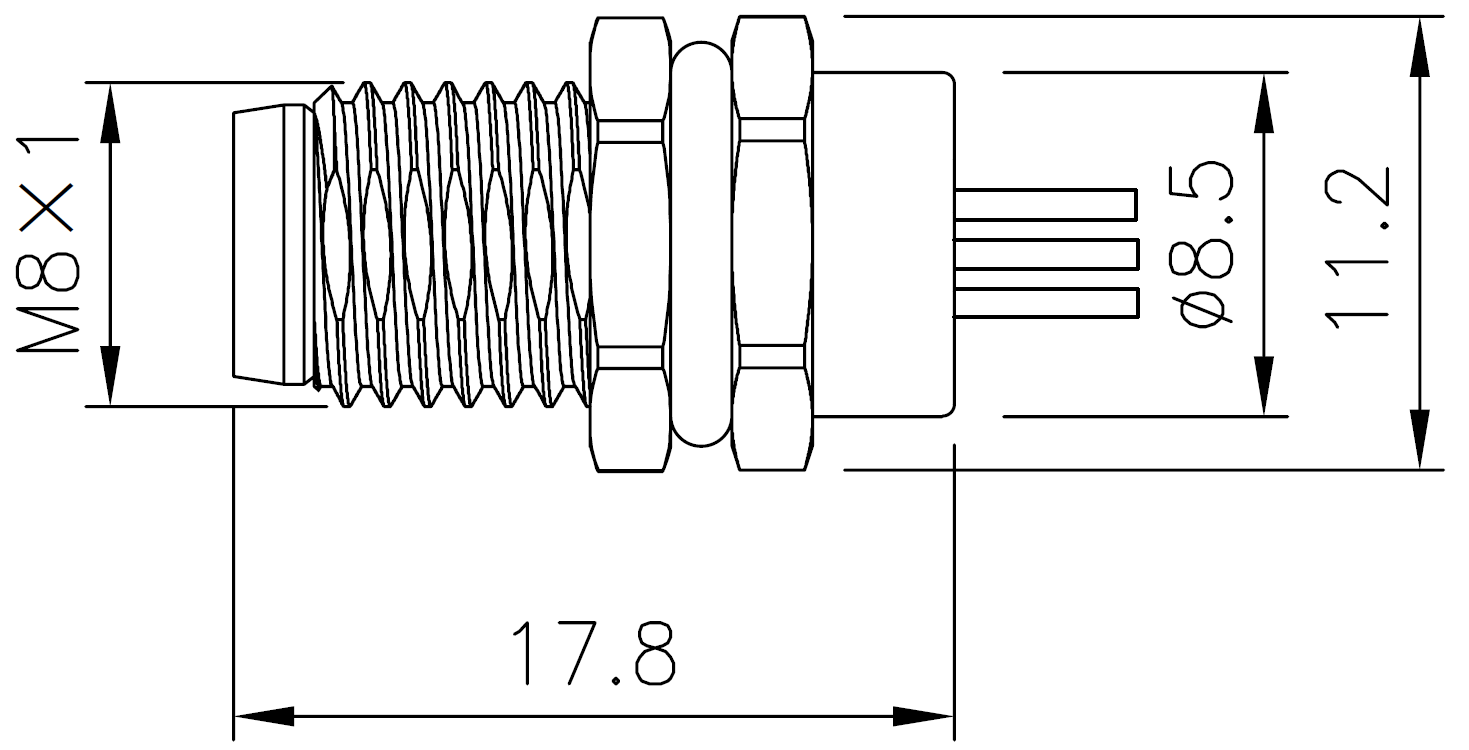

Panel Mount M8 Male Connector 3/4/5/6/8Pin Front Mounting 0.5m Pre Wired



Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Brass,nickel-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Model No.
Panel Mount M8 Male Connector 3/4/5/6/8Pin Front Mounting 0.5m Pre Wired Front mounting A 3A 60V Straight 0.5m Pre-wired M0803M-0.5F/M8
