3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact

  • 1
  • 2

Brand Name : KRONZ

Model Number : F1203M-PF/M16

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Name : M12 panel mount connector

Standard : IEC 61076-2-101

Rated Current : 4A

Mating Cycles : >100

OEM : Available

Voltage : 250V

Contact Now

M12 Circular Connectors Panel Mount PCB Front Mounting 3 Pin Male Straight Contact



Product Description

M12 flange connectors follow standard IEC 61076-2-101, it have 3/4/5/8/12 pin A-coding Male and Female circular panel mount socket featuring a metal body and IP67 protection rating. The socket features an M12 thread and 4A current rating, PCB contacts termination, front mounting type.

3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact

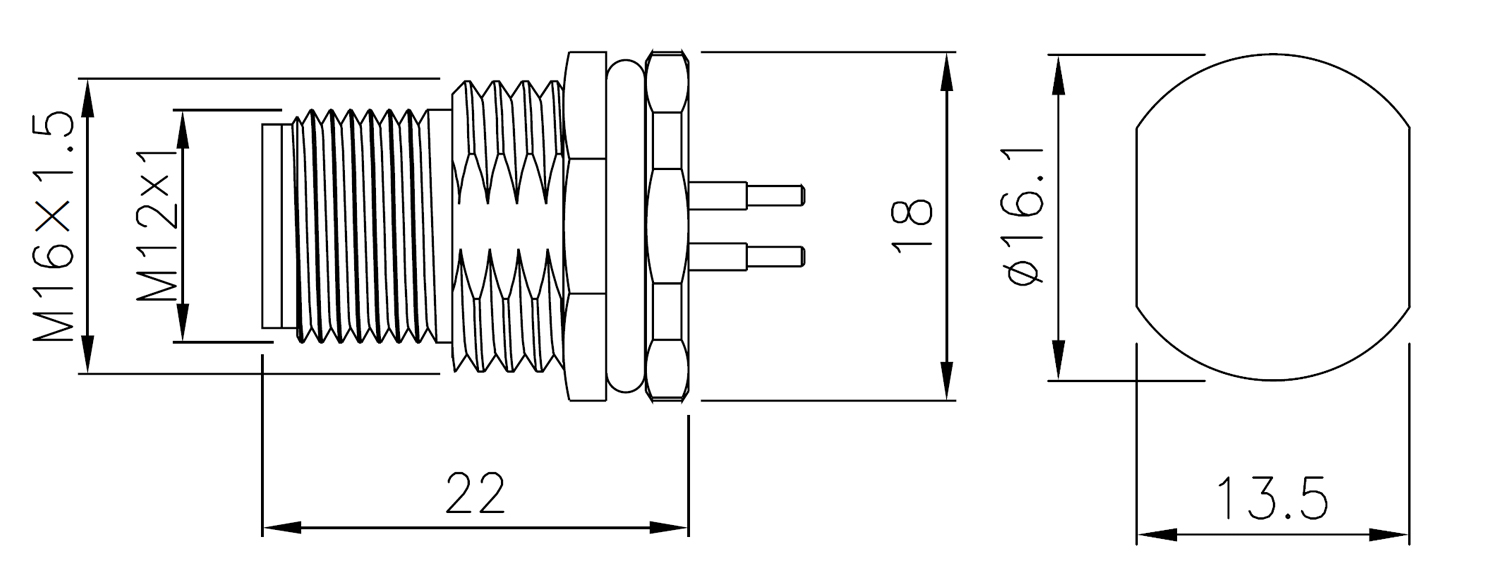

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

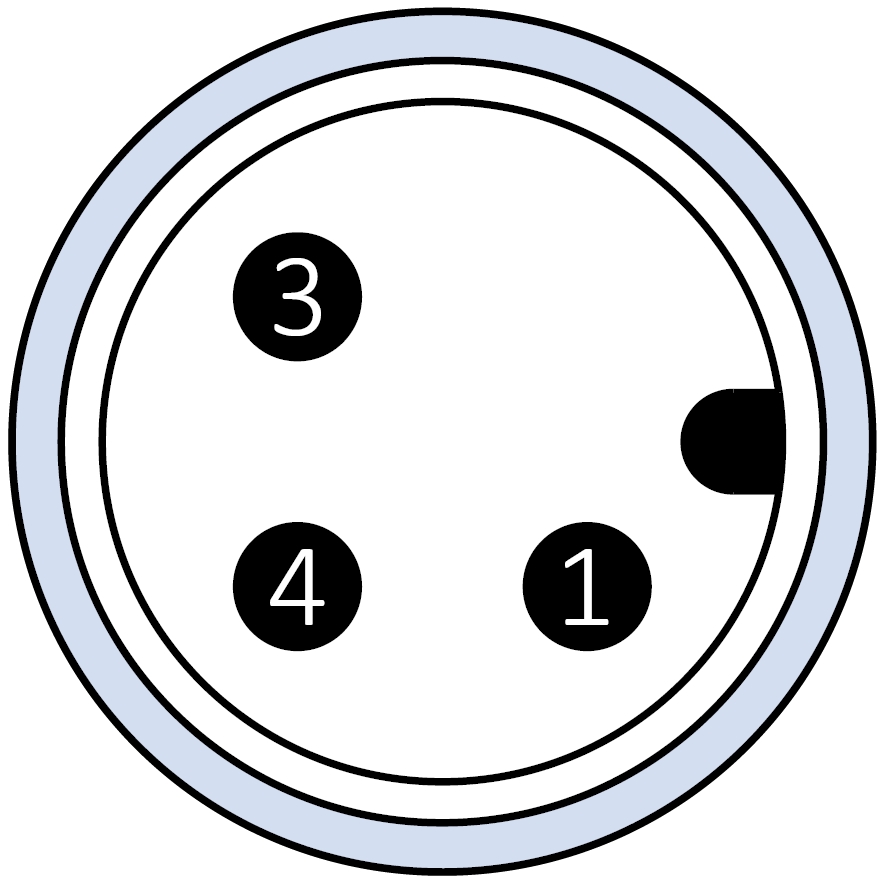

Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
3 Pin Male M12 Circular Connectors Panel Mount PCB Front Mounting Straight Contact Front mounting A 4A 250V Straight PCB version M1203M-PF/M16
