Panel Mount M12 Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version

  • 1
  • 2

Brand Name : KRONZ

Model Number : F1208M-PR/M16

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Type : M12 flange connector

Standard : IEC 61076-2-101

Code : A

Mounting Type : Rear

IP Rate : IP67

Rated Current : 4A

Contact Now

M12 Panel Mount Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version



Product Description

M12 flange connectors with screw locking and pin count of 8 is according to its protection class IP67 dustproof and complete protection against contact.Protection against permanent submersion, Unless otherwise specified, protection up to 1 meter water depth. It can be used in areas with a pollution degree of 3. In places where contamination can occur that is conductive or can become conductive through condensation.With temperatures ranges of -25 °C/85 °C is this M12-A coded male panel mount connector designed for both severe cold and severe heat. Due to the qualified rated voltage of 30 V and the rated current of 2,0 A it is perfectly tuned for its field of application. It complies with the type standard DIN EN 61076-2-101.



Panel Mount M12 Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version

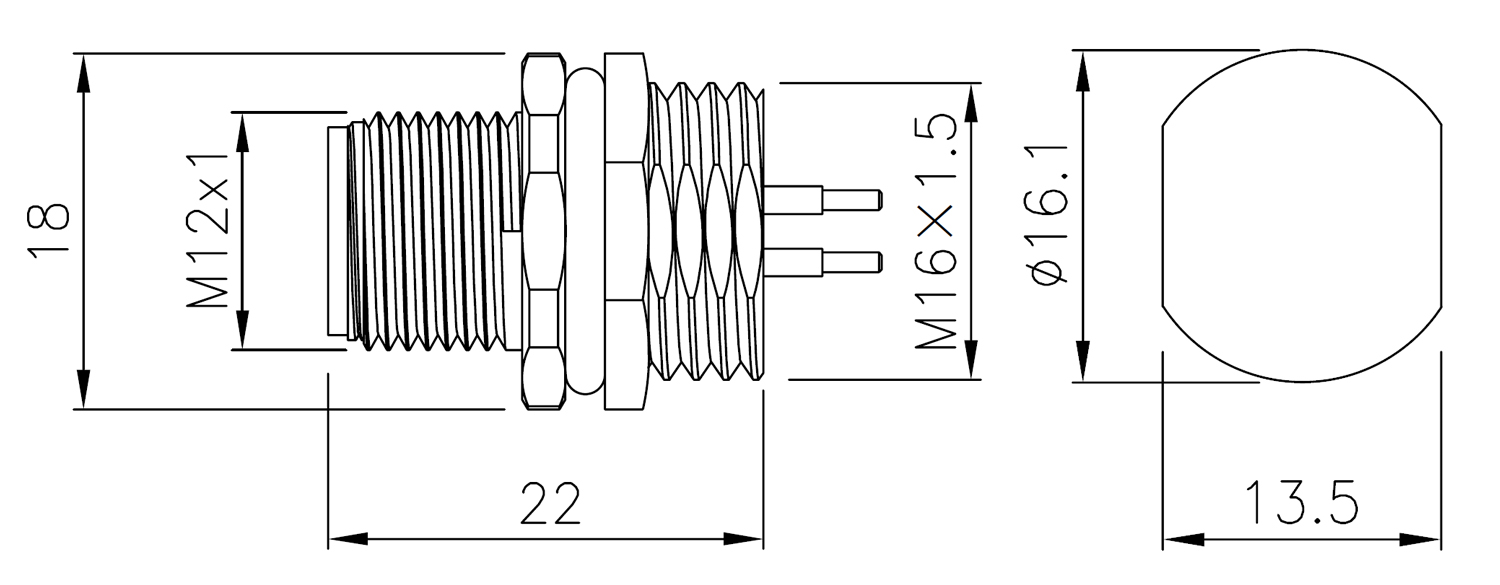

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

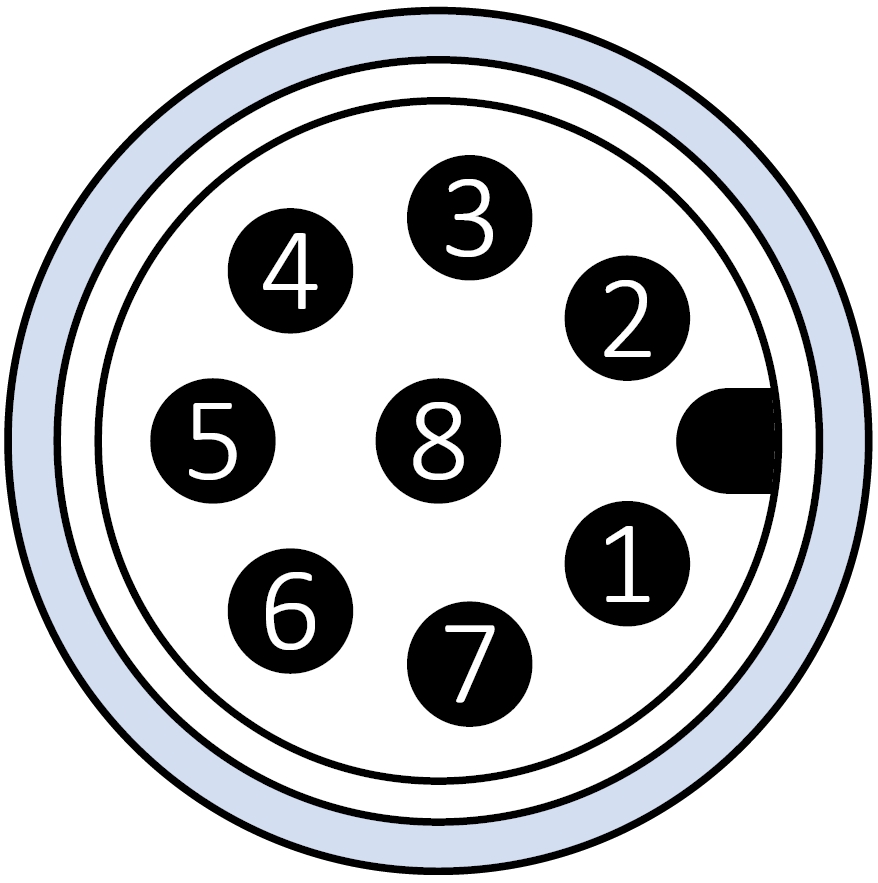

Pin assignment Mounting type Coding Rated current Voltage Cable outlet Contacts termination Part No.
Panel Mount M12 Connector 8 Pin IEC 61076-2-101 Male Rear Mounting PCB Version Rear mounting A 2A 30V Straight PCB version F1208M-PF/M16
