Ethernet IP RJ45 Connector Pre Assembled Cable

Name: Ethernet IP RJ45 Connector Pre Assembled Cable
Brand: KRONZ
Price: 1 USD

Buy cheap Ethernet IP RJ45 Connector Pre Assembled Cable product

Model Number : RJ45S-2/E621

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Type : RJ45

Description : Pre-assembled Cable with RJ45 Connector

Pin : 8

Cable color : Green

Material : PVC

Degree of protection : IP20

Mating cycles : >100

Ambient temperature : -25~+85℃

Contact Now

RJ45 Connector Pre-assembled Cable IE Connector Straight Ethernet IP

Product Description

The RJ45 connector is a common network connection method used to interconnect network devices. By using twisted pairs, many devices can be connected to a device called a switch to form a large network. At the same time, the RJ45 interface can also be used to connect a Modem (modem) to achieve remote transmission of data.

Ethernet IP RJ45 Connector Pre Assembled Cable

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

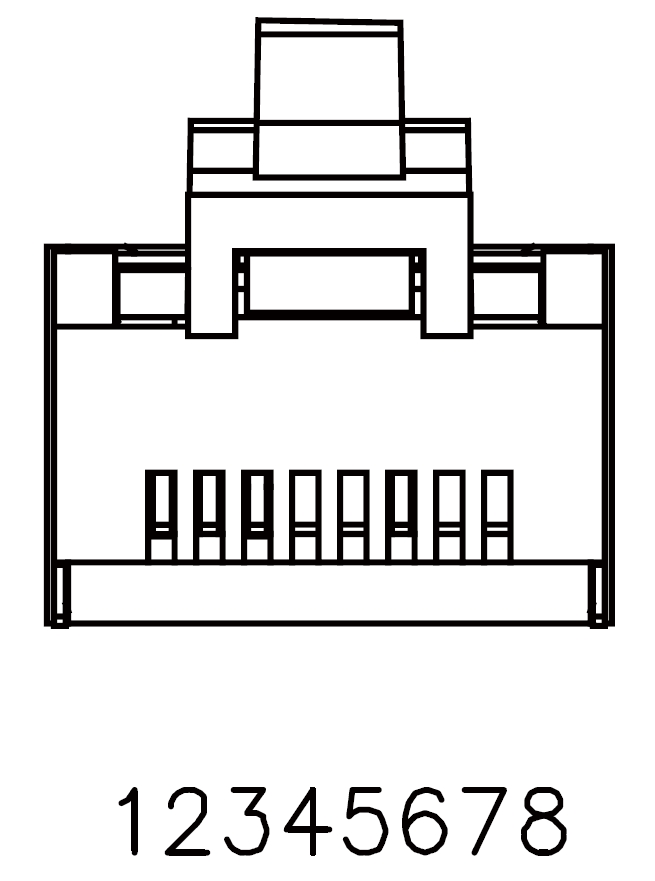

Pin assignment	Wire color	PIN	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
	1 = WH/OR 2 = OR 3 = WH/GN 4 = BU 5 = WH/BU 6 = GN 7 = WH/BN 8 = BN	8PIN	1.5A	48V	4×2×0.25,shielded (4×2×24AWG) yellowish green, PVC,drag chain, OD=8.0	Straight	2M	RJ45S-2/E621
							5M	RJ45S-5/E621
							10M	RJ45S-10/E621
