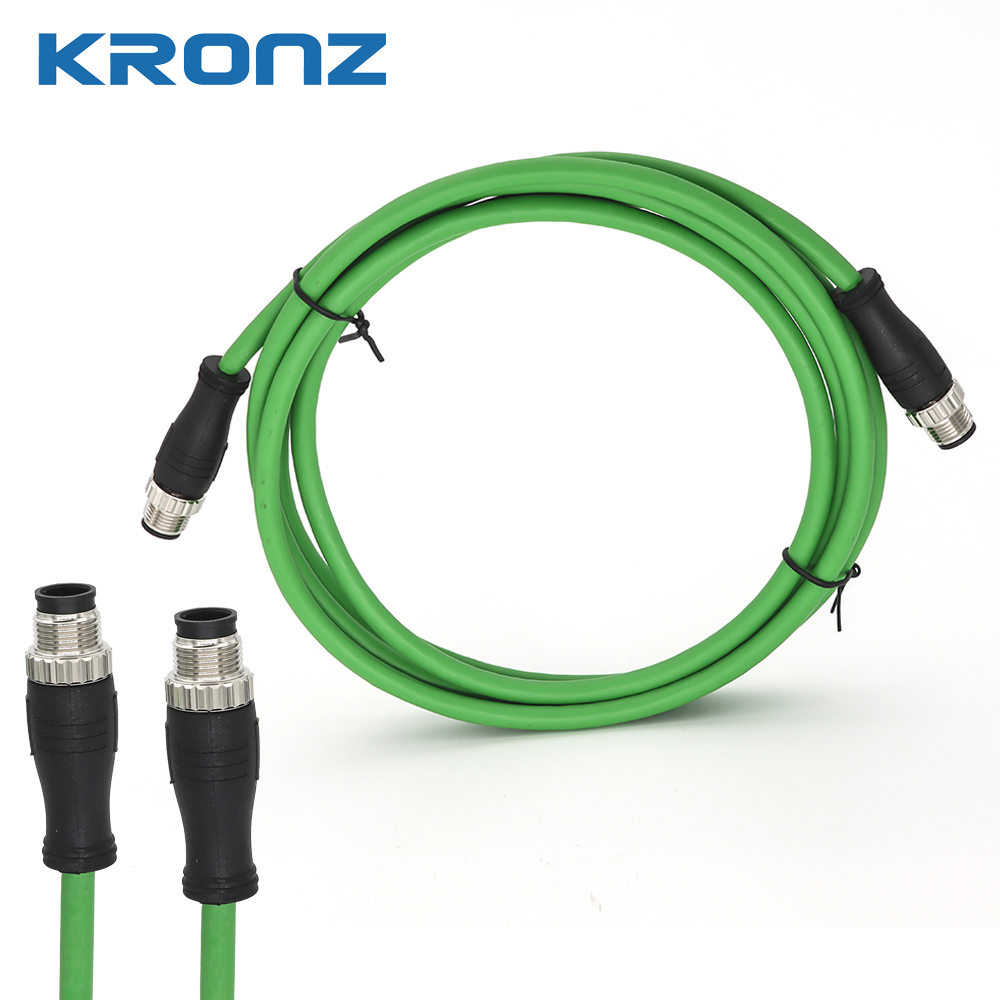

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Name: IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector
Brand: KRONZ
Price: 1 USD

Buy cheap IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector product

Brand Name : KRONZ

Model Number : M1204DM-10-M1204DM/E331

Certification : CE

Place of Origin : Guangdong, China

MOQ : 50

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

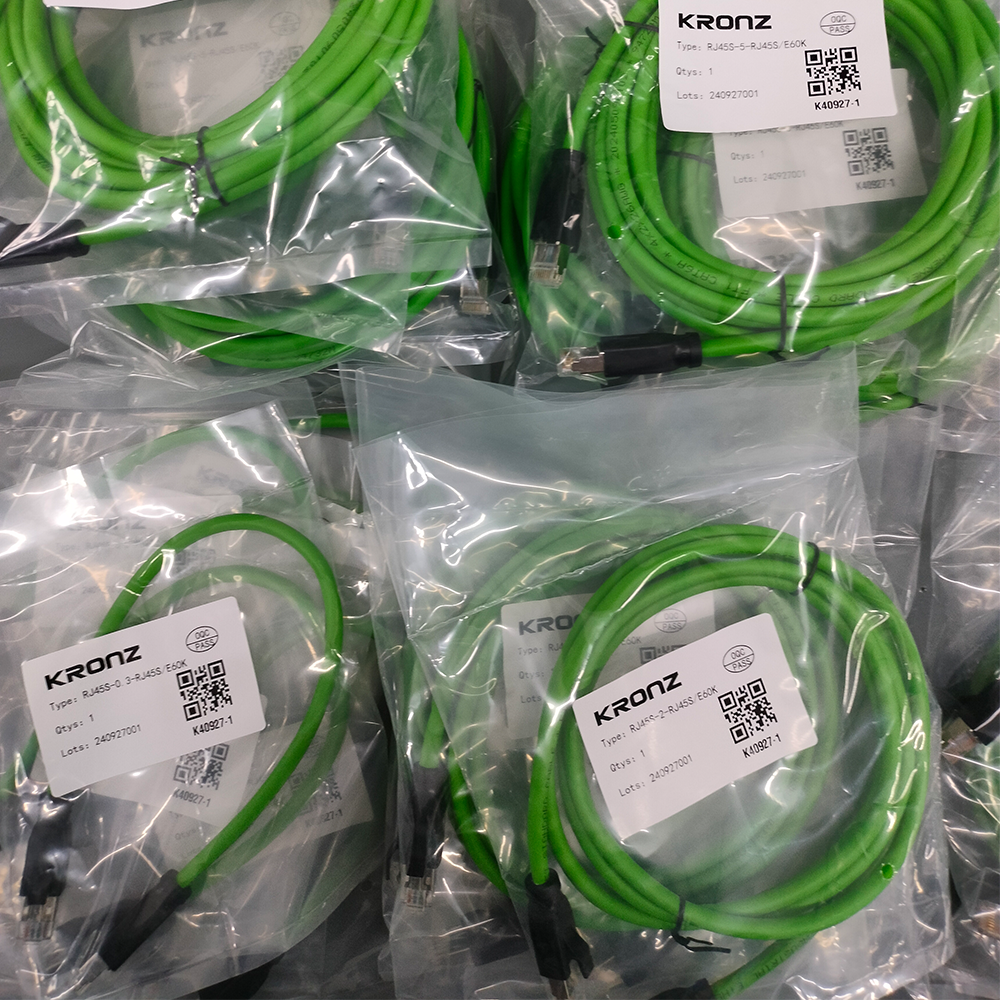

Packaging Details : Polybag packing

Contact surface material : Brass, Gold-plated

Insulation resistance : ≥100MΩ

Wire OD : 6.2

Current : 1.5A

Cable : Shield, 10m

Seal material : FPM

Voltage : 60V

Cable length : 10 meter

Contact Now

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Product Description

Reliable M12 Ethernet Connector – Shielded 4/8 pin cable, pre-assembled for quick installation, providing D/A/X coding for efficient and secure networking.

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

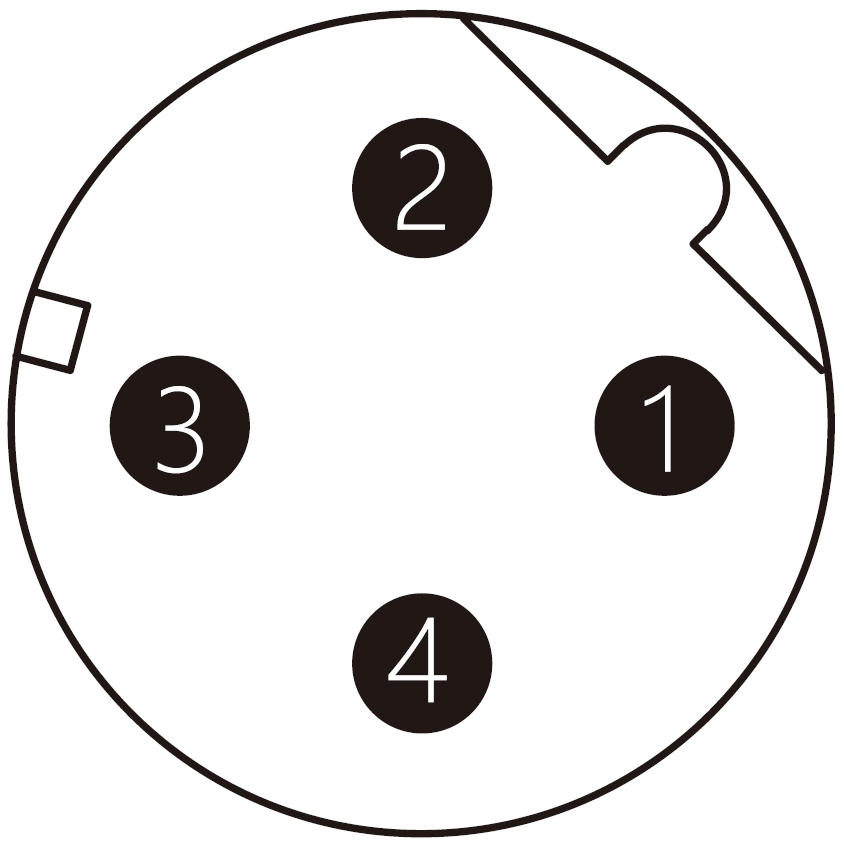

Pin assignment

Wire color

Coding

Rated current

Voltage

Wire gauge

Cable outlet

Length

Model No.

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

1 = WH/OR(+tx)
2 = WH/GH(+rx0
3 = OR(-tx)

4 = GN(-rx)

1.5A

60V

2×2×0.14,shielded
(2×2×26AWG)
Blueish green,
PUR,drag chain
OD=6.2

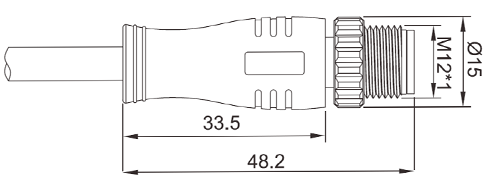

Straight

M1204DM-10-M1204DM/E331

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

Company Profile

IE Shield Cable M12 Connector 4 Pin D Coding Male Circular Connector

A: The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

Q: What is the supply ability of this product?

A: The supply ability of this product is 100000 pieces per month.
